TERNARY CONTOUR PLOT

TERNARY CONTOUR PLOT

Description:

A ternary plot or a triangle plot, is a barycentric plot on three variables which sum to a constant.
It graphically depicts the ratios of the three variables as positions in an equilateral triangle.

• Contour plots can be used for example to chart the response of an independent variable to changes in a mixture of three components.
• A ternary contour plot has 4 columns of data.
• In a ternary contour plot, the values of the three variables a, b, and c must sum to some constant, K.

• The constant is represented as 1.0 or 100%.

• Every point on a ternary plot represents a different composition of the three components.

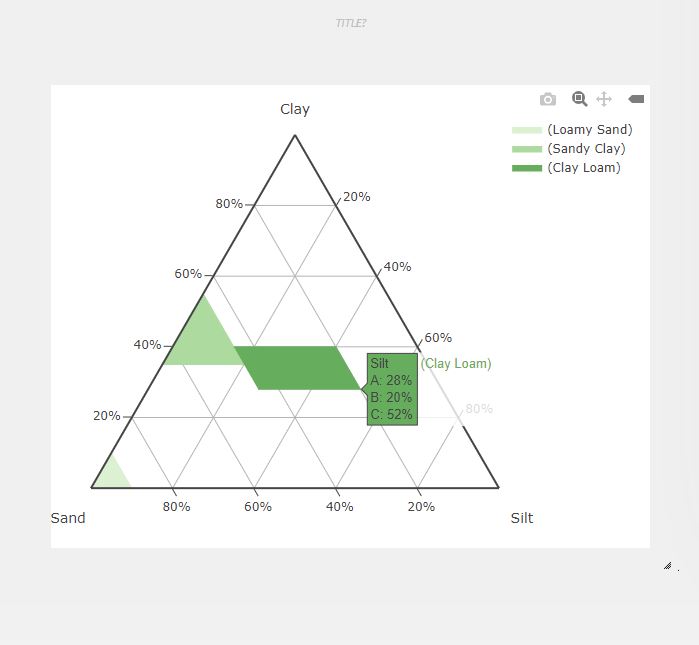

Example

A	B	C	D
Type	Clay	Sand	Silt
Loamy Sand	0	100	0
Loamy Sand	10	90	0
Loamy Sand	0	90	10
Sandy Clay	35	65	0
Sandy Clay	35	45	20
Sandy Clay	55	45	0
Clay Loam	40	45	15
Clay Loam	40	20	40
Clay Loam	28	20	52
Clay Loam	28	45	27

TERNARYPLOT(A1:D11)
